Vectors are the backbone of game physics. The Vec2 class gives you everything you need for 2D movement, collision response, and spatial calculations.

Creating Vectors

A Vec2 represents a point or direction in 2D space. You can create them with x and y components, or as a zero vector.

position = kn.Vec2(100, 200)
velocity = kn.Vec2(-3)  # (-3, -3)
zero = kn.Vec2.ZERO  # (0, 0)

kn::Vec2 position(100, 200);
kn::Vec2 velocity(-3); // (-3, -3)
kn::Vec2 zero = kn::Vec2::ZERO;

Access components with .x and .y:

>>> print(f"X: {position.x}, Y: {position.y}")
X: 100, Y: 200

#include <iostream>

std::cout << "X: " << position.x << ", Y: " << position.y << '\n';
// X: 100, Y: 200

Basic Movement

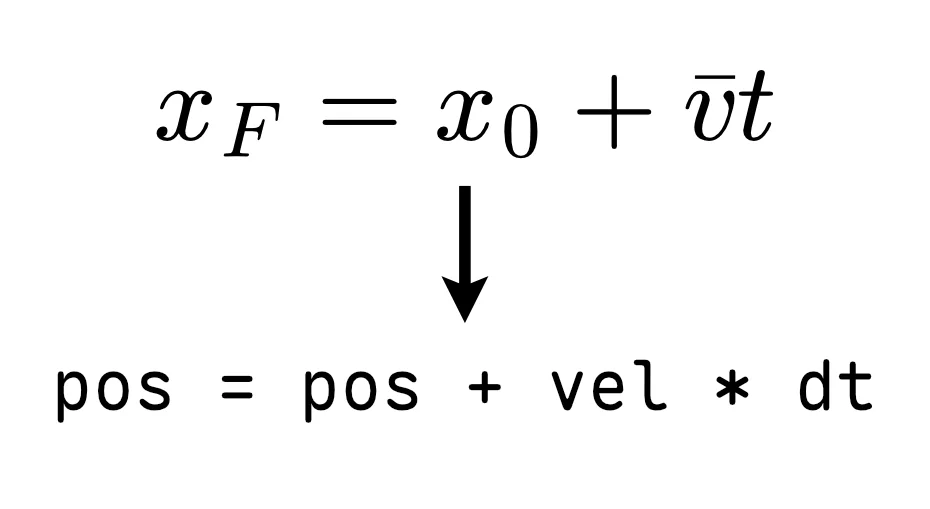

The simplest physics is moving an object by adding velocity to position each frame. Multiply velocity by delta time to keep movement frame-rate independent.

import pykraken as kn

kn.init()
kn.window.create("Movement Demo", 800, 600)
bg_color = kn.Color("#222")

circle = kn.Circle(400, 300, 20)
direction = kn.Vec2.RIGHT  # (1, 0)
speed = 200  # pixels per second

while kn.window.is_open():
    kn.event.poll()

    dt = kn.time.get_delta()

    # velocity = speed * direction
    # Optimization tip: Multiply the scalars first
    circle.pos += dt * speed * direction

    kn.renderer.clear(bg_color)
    kn.draw.circle(circle, kn.Color.WHITE)
    kn.renderer.present()

kn.quit()

#include <kraken/KrakenEngine.hpp>

int main() {
    kn::init();
    kn::window::create("Movement Demo", 800, 600);
    const kn::Color background(34, 34, 34);
    kn::Circle circle(400, 300, 20);
    const kn::Vec2 direction = kn::Vec2::RIGHT;
    const double speed = 200;

    while (kn::window::isOpen()) {
        kn::event::poll();
        const double dt = kn::time::getDelta();
        circle.pos += direction * (dt * speed);
        kn::renderer::clear(background);
        kn::draw::circle(circle, kn::Color::WHITE);
        kn::renderer::present();
    }
    kn::quit();
}

Result:

Normalizing Vectors

A normalized vector (unit vector) has a length of 1. This is essential for consistent movement speed. Without it, diagonal movement is about 1.41x faster!

# Without normalization, diagonal is faster
direction = kn.Vec2(1, 1)  # length ≈ 1.414

# Normalize to get consistent speed
direction.normalize()  # new length = 1.0

# Now apply your desired speed
speed = 200
velocity = direction * speed

kn::Vec2 direction(1, 1);
direction.normalize();
const double speed = 200;
kn::Vec2 velocity = direction * speed;

Use normalization whenever you need a pure direction without magnitude.

Dot Product

The dot product tells you how aligned two vectors are:

Positive: Same general direction
Zero: Perpendicular (90°)
Negative: Opposite directions

forward = kn.Vec2.RIGHT  # (1, 0)
to_target = (target_pos - my_pos).normalized()

alignment = kn.math.dot(forward, to_target)

if alignment > 0.7:
    print("Target is in front")
elif alignment < -0.7:
    print("Target is behind")
else:
    print("Target is to the side")

kn::Vec2 forward = kn::Vec2::RIGHT;
kn::Vec2 toTarget = (targetPos - myPos).normalized();
double alignment = kn::math::dot(forward, toTarget);

if (alignment > 0.7) {
    std::cout << "Target is in front\n";
} else if (alignment < -0.7) {
    std::cout << "Target is behind\n";
} else {
    std::cout << "Target is to the side\n";
}

Cross Product (2D)

In 2D, the cross product returns a scalar indicating rotation direction. Useful for determining which way to turn to face a target.

a = kn.Vec2(1, 0)
b = kn.Vec2(0, 1)

# Positive, meaning b is counter-clockwise from a
cross = kn.math.cross(a, b)

kn::Vec2 a(1, 0);
kn::Vec2 b(0, 1);
double cross = kn::math::cross(a, b); // Positive.
